Products: SMT Reflow Oven reflow soldering oven,5 zones reflow solding machine

Model:  SUNY-SMT520

Our factory is mainly to produce the PCB production equipment, we have all the machine which used for the entire

PCB production like the:

• PCB cutting machine

• PCB  CNC drilling and milling machine

• Circuit board buffing machine

• Through-hole machine

• Screen printing machine

• Laser printer

• Film laminator

• Spray imaging machine

• Spray etching machine

• Spray stripping machine

• Tin-sinking machine

• Pick and place machine

• Reflow Oven

Our machine can used for the 200*300mm/300mm*400/400*500mm etc. PCB boards.

You can  also inform us your PCB size, then we can custom the machine for you!!!!

SMT Reflow Oven reflow soldering oven,5 zones reflow solding machine

Model: SUNY-SMT520

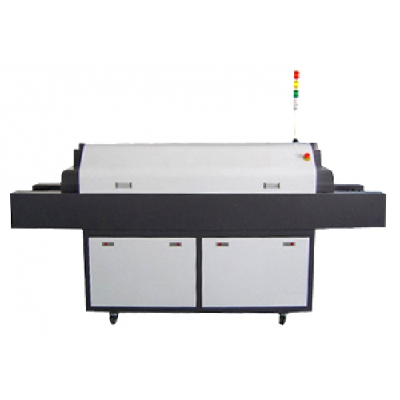

Full Automatic lead-free reflow soldering machine SUNY-SMT520

Specification

1. Heating area number: up five/down five;

2. Completing precision welding of QFP, CSP, Chip and BGA such devices;

3. Heating area length: 1600mm;

4. Control mode: PID intelligent control;

5. Heating mode: independent minor cycle all hot air;

6. Cooling zone number: forced air cooling;

7. PCB width: net belt type 300mm;

8. Transport direction: L-R,L-R;

9. Transmit height: net belt 880±20mm;

10. Power supply : AC 3phase 380V 50Hz;

11. Start power: 15KW;

12. Normal work power consumption: approx.4KW

13. Warming time: 15min;

14. Temperature control scope: room temperature -400°C;

15. Control mode: PID   SSR driver (or PLC   computer control);

16. Temperature control precision: ± 1°C; PCB temperature distribution deviation: ±2°C;

17. Configured with SMT soldering control software with a national computer software copyright registration certificate and other completely independent intellectual property rights, which can avoid the third party intellectual property dispute and legal proceedings, at the same time provide long-term free upgrades service

18. Weight: about 350kg;

19. Overall dimension: about L3000×W650×H 1280mm.

20. Operating system:Touch screen control.
