Quick Details
Place of Origin: Hunan, China (Mainland)
Brand Name: Suny
Model Number: SUNY-ZXY400
Maximum imaging size:: 400mm*300mm
Usage: PCB board imagaing/developing
Power: 220V 1800W
- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
Place of Origin: Hunan, China (Mainland)
Brand Name: Suny
Model Number: SUNY-ZXY400
Maximum imaging size:: 400mm*300mm
Usage: PCB board imagaing/developing
Power: 220V 1800W
Products: Developing machine for PCB board, board developer machines, development machines pcb Packaging & Delivery
Packaging Details: Wooden or paper cases.
Our factory is mainly to produce the PCB production equipment, we have all the machine which used for the entire PCB production process.
PCB production machines like the:
PCB cutting machine
PCB CNC drilling and milling machine
Circuit board buffing machine
Through-hole machine
Screen printing machine
Laser printer
Film laminator
Spray imaging machine
Spray etching machine
Spray stripping machine
Tin-sinking machine
Pick and place machine
Reflow Oven
Our machine can used for the 200*300mm/300mm*400/400*500mm etc. PCB boards.
You can also inform us your PCB size, then we can custom the machine for you!!!!

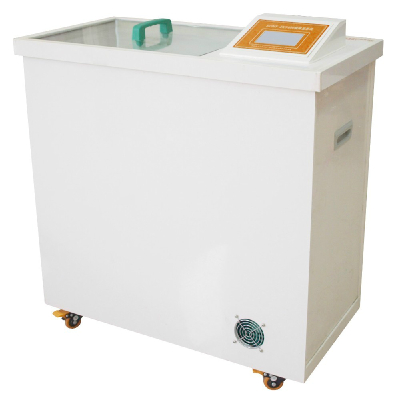

Printed circuit board spray imaging machine SUNY-ZXY400
1. Usage: realizing imaging process of the circuit board processing through high pressure spraying;
2. Function characteristics: opening-cover detection function to better protect the operator not splashed by liquid; low liquid alarm function, preventing dry heating function, automatic constant temperature function, automatic regular alarm function;
3. Control system: high-performance ARM embedded processor embedded operating system, human-computer interface: big screen color LCD screen touch screen; In touch screen you can read electronic edition imaging process manual ; In touch screen you can play the circuit board design sketch after imaging process;
4. Maximum imaging size: 400mm×300mm double-sided board;
5. Imaging mode: hanging double-sided spray imaging
6. Imaging time: 5S~99M59S adjustable
7. Imaging temperature: room temperature~55°C adjustable;
8. Heating tube: 800W*2, 316# stainless steel heating tube;
9. Spray motor: 150W complete anticorrosive isolation pump;
10. Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;
11. Imaging liquid volume: 40L (standard);
12. Working power: AC220V/50Hz 1800W;
13. Overall dimension: 800mm×400mm×813mm
14. Net weight: 50KG.
About us:
SUNY Instrument Limited is a leading designer & manufacturer for overall solutions of electronic products rapid prototyping, which integrated the business like research & development, production & manufacturing, marketing, engineering, managing and training services. At the same time, we are agency of the brands of laboratory instruments as LABFREEZ.
Our company has acquired certificates of ISO9001, ISO4001 and CE.Our main products range: teaching instruments like quick PCB manufacturing equipment, SMT welding equipment, intelligent production line, small CNC processing equipment and etc. Laboratory instruments like freezers, refrigerators, freeze dryers, ice makers, petroleum & oil testing and etc.
We provide customers integrated solutions and professional services of electronic product design, PCB molding, SMT welding, product assembly and commissioning.
Adhering to the 'people-oriented, reputation winning' concept, our company dedicates to provide high-performance solution for electronic industry, scientific research institutes, and education area; we are committed to promoting healthy development of electronic products rapid prototyping technology in the world.
