The highest capacity LED light board pick and place assemble machine20heads,high speed LED pick and place machine, Pick and place machine

The highest capacity LED light board pick and place assemble machine20heads,high speed LED pick and place machine, Pick and place machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: SHENZHEN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-02-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Hunan, China
  • Brand Name:  Suny
  • Model Number:  SUNY-FPS871

Quick Details

  • Place of Origin: Hunan, China (Mainland)

  • Brand Name: SUNY

  • Model Number: SUNY-FPS871

  • Max PCB size: 1200*350mm

  • Mount head: 20 head

  • Viual: 15 inch High-pixel color infrared

  • Average Power: 3500W

  • feeder quantity: 40

  • mounting element: 0603/0402~20*20mm IC(SOT,SOP,QFP etc.)

  • Placement Speed: 56000CPH

Packaging & Delivery

Packaging Details:Standard export package
Delivery Detail:7-10 days

Products: Full automatic pick and place machine 1200*350mm 20 heads



Model: SUNY- FPS871

Our factory is mainly to produce the PCB production equipment, we have all the machine which used for the entire



PCB production like the:



  • PCB cutting machine

  • PCB  CNC drilling and milling machine

  • Circuit board buffing machine

  • Through-hole machine

  • Screen printing machine

  • Laser printer

  • Film laminator

  • Spray imaging machine

  • Spray etching machine

  • Spray stripping machine

  • Tin-sinking machine

  • Pick and place machine

  • Reflow Oven



Our machine can used for the 200*300mm/300mm*400/400*500mm etc. PCB boards.



You can  also inform us your PCB size, then we can custom the machine for you!!!!

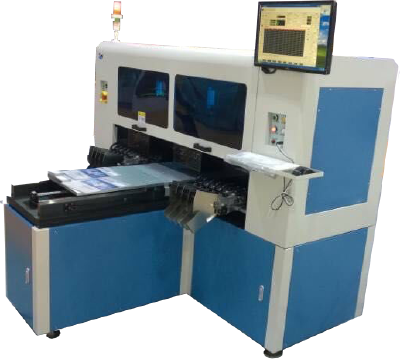

Full automatic pick and place machine PCB board size 1200*350mm 20Heads





Features:



1.Fetching at the same time and sticking at the same time,greatly improves the production efficiency.



2.The head spacing of mounter can be adjusted automatically and it is suitable for different spacing PCB.



3.Two heads stick parts in turn incessantly to make the efficiency is higher.



4.Identifying the mark Automatically; patent- mathematical operation model, accurate posting



5.Fitted with 40 feeder lanes



6.All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor







Parameter:



Placement Speed:

56000CPH

Placement Accuracy

±0.1mm

Dimension of PCB

60*60~1200*350mm

The thickness of PCB:

1mm-4mm

Feeder number

40

Mounting Head Number

20

The Range of Components:

3014,3528,5730 etc.LED element

Position method

Image recognition  Algorithm Compensation

Pick the components

Picking at the same time

Electronic Parameter

Simple -Phase 220V AC 50HZ 3.5KVA

Air Source Requirement

Dry air 0.45Mpa~0.6Mpa 50L/min

Machine dimension

2100*2050*1580mm

Machine weight

1100kg


  • Place of Origin:  Hunan, China
  • Brand Name:  Suny
  • Model Number:  SUNY-FPS871
