Our factory is mainly to produce the PCB production equipment, we have all the machine which used for the entire

PCB production like the:

• PCB cutting machine

• PCB  CNC drilling and milling machine

• Circuit board buffing machine

• Through-hole machine

• Screen printing machine

• Laser printer

• Film laminator

• Spray imaging machine

• Spray etching machine

• Spray stripping machine

• Tin-sinking machine

• Pick and place machine

• Reflow Oven

Our machine can used for the 200*300mm/300mm*400/400*500mm etc. PCB boards.

You can  also inform us your PCB size, then we can custom the machine for you!!!!

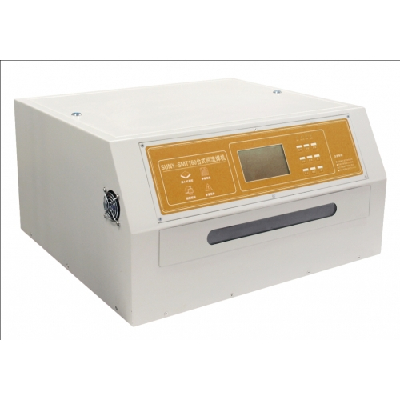

Desktop Reflow Soldering machine, Reflow Oven

Model: SUNY-SMT100

Parameter:

1. Technology type: hot wind reflow heating, supporting lead and lead-free welding process;

2. Welding area of temperature zone: 400mm×380mm;

3. Selfcontained RS232 and USB double communication interface, which can be connected to computer, conducting parameter setting and welding condition monitoring

4. Welding warehouse door in and out: manual in and out mode;

5. Preset welding parameters: 8 groups;

6. Interface: Chinese electronic menu, big screen backlighting LCD graphics display;

7. With glass observation window to view the whole SMT welding process;

8. With seven convection fans, maximum warming stepping speed: ≤1°C/s;

9. Alarm sound state: set whether there is alarm sound;

10. Configurated with SMT teaching demonstration video and courseware;

11. Configurated with SMT reflow soldering control software, to provide long-term free upgrades service;

12. Working voltage: AC170V ~ 264 V; start power: about 4.8 KW, working power: about 3 KW

13. Process cycle: ≤5min

14. Weight: 33Kg

15. Overall dimension: 640mm×600mm×380mm.
