SUNY-XJUD-5.5 Digital display cantilever impact test machine, impacttesting machine

SUNY-XJUD-5.5 Digital display cantilever impact test machine, impacttesting machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: SHENZHEN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-02-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Hunan, China
  • Brand Name:  Suny
  • Model Number:  SUNY-XJUD-5.5

Specifications

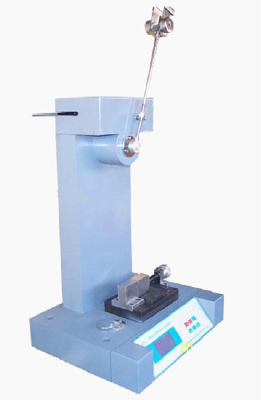

SUNY-XJUD-5.5 Digital Display Izod Impact Tester/Plastic Impact Tester
Digital Display Izod Impact Tester/Plastic Impact Tester



Product:    Digital Display Izod Impact Tester/Plastic Impact Tester



Model:   SUNY- XJUD-5.5





Introduction:



SUNY-XJUD-5.5 digital display cantilever impact testing machine, in line with IS0180-82, JB/T8761-1998 standards.



Mainly used in hard plastic, reinforced the determination nylon, fiberglass, ceramics, cast stone, electrical insulating materials, such as non-metallic material impact toughness.



The chemical industry, research institutes, universities, quality inspection departments ideal test equipment.







Features:



This machine adopts single chip microcomputer control, LCD screen English display, convenient operation, high control accuracy.



Automatically correct energy loss from the friction and windage, without the need for correction by manual calculation.



Direct display of the corrected sample to absorb energy, improve the accuracy and efficiency of the test.



Each test is completed, the impact energy is automatically calculated and displayed.



Display the current energy value and average energy value of each impact sample after completion of the test.





Main technical indexes:





Pendulum energy 1J, 2.75J, 5.5J



Impact speed  3.5m/s



Pendulum bob rise angle  160°



Distance from pendulum shaft center to the impact blade  0.322m



White pendulum hammer moment  1J pendulum bob           PL=0.5155Nm

                                                                 2.75J pendulum bob     PL=1.4177Nm

                                                                 5.5J pendulum bob       PL=2.8355Nm



Distance from impact blade to the jaw mouth   22mm



Blade radius   R=0.8mm



Energy display resolution    0.01J



Impact energy error  <0.5% of range



Power supply AC 220V3A







Sample type table:



Sample type

Length L(mm)

Width b(mm)

Thickness h(mm)

1

80±2

10±0.2

4±0.2

2

63.5±2

12.7±0.2

12.7±0.5

3

63.5±2

12.7±0.2

6.4±0.3

4

63.5±2

12.7±0.2

3.2±0.2



About us:

SUNY Instrument Limited is a leading designer & manufacturer for overall solutions of electronic products rapid prototyping, which integrated the business like research & development, production & manufacturing, marketing, engineering, managing and training services. At the same time, we are agency of the brands of laboratory instruments as LABFREEZ.


Our company has acquired certificates of ISO9001, ISO4001 and CE.Our main products range: teaching instruments like quick PCB manufacturing equipment, SMT welding equipment, intelligent production line, small CNC processing equipment and etc. Laboratory instruments like freezers, refrigerators, freeze dryers, ice makers, petroleum & oil testing and etc.


We provide customers integrated solutions and professional services of electronic product design, PCB molding, SMT welding, product assembly and commissioning.


Adhering to the 'people-oriented, reputation winning' concept, our company dedicates to provide high-performance solution for electronic industry, scientific research institutes, and education area; we are committed to promoting healthy development of electronic products rapid prototyping technology in the world.


  • Place of Origin:  Hunan, China
  • Brand Name:  Suny
  • Model Number:  SUNY-XJUD-5.5



Main technical indexes:


   Model


SUNY-XJUD-5.5


Impact speed

3.5m/s

Charpy energy

 7.5J, 15J, 25J, 50J

Hit center distance

322mm

Pendulum bob rise angle

160°

Blade radius

R=2±0.5mm

Jaw fillet radius

R=1±0.1mm

Impact blade angle

30±l°

Energy display resolution

   0.5%

Jaw support space (mm)

40, 60, 70, 95

Dimension(mm)

460 × 330 × 745





Sample type table:


Sample type

Length L(mm)

Width b(mm)

Thickness h(mm)

Support line space

1

80±2

10.0±0.5

4±0.2

60

2

50±1

6±0.2

4±0.2

40

3

120±2

15±0.5

10±0.5

70

4

125±2

13±0.5

13±0.5

95
