Place of Origin: Hunan, China (Mainland)
Brand Name: SUNY
Model Number: SUNY-FPS625Z
Max PCB size: 1200*350mm
Mount head: 6 head
Viual: 15 inch High-pixel color infrared
Average Power: 2200W
feeder quantity: 30
mounting element: 0603/0402~20*20mm IC(SOT,SOP,QFP etc.)
Placement Speed: 21000CPH
Products: Full automatic pick and place machine maximum PCB board size 1200*350mm Model: SUNY- FPS625ZPackaging & Delivery
Packaging Details: Standard export package Delivery Detail: 7-10 days
Our factory is mainly to produce the PCB production equipment, we have all the machine which used for the entire
PCB production like the:
PCB cutting machine
PCB CNC drilling and milling machine
Circuit board buffing machine
Through-hole machine
Screen printing machine
Laser printer
Film laminator
Spray imaging machine
Spray etching machine
Spray stripping machine
Tin-sinking machine
Pick and place machine
Reflow Oven
Our machine can used for the 200*300mm/300mm*400/400*500mm etc. PCB boards.
You can also inform us your PCB size, then we can custom the machine for you!!!!

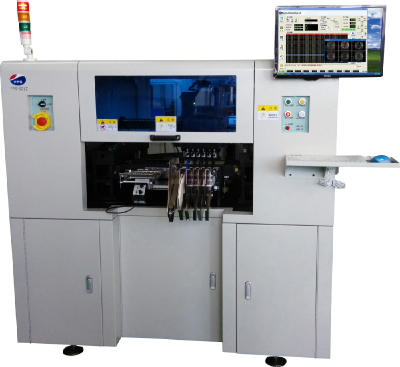

Full automatic pick and place machine maximum PCB board size 1200*350mm
Features:
1.Optical image recognition, adjusting the components on the flying process, identifying the mark Automatically; patent- mathematical operation model, accurate posting.
2.Digital test pressure, automatically process and alarm when it didn't pick the components successfully
3.Three-sector on transmission system, reduce the time for delivering the boards
4.Fitted with 30 feeder lanes
5.Fitted with one vibratory feeder ( optional ) and one IC tray ( optional )
6.All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor
7.”3points teaching” manufacturing process is Adopted for special LED board, makes the programming time shorten greatly improves the production efficiency.
Parameter:
Placement Speed: | 21000CPH |
Placement Accuracy | ±0.06mm |
Dimension of PCB | 60*65~1200*350mm |
The thickness of PCB: | 1-4mm |
Feeder number | 30 |
Mounting Head Number | 6 |
The Range of Components: | 0603/0402~20×20mm IC(SOT,SOP,QFP etc.) |
Position method | Image recognition Algorithm Compensation |
Pick the components | At the same time |
Electronic Parameter | Simple -Phase 220V AC 50HZ2.2KVA |
Air Source Requirement | 0.45Mpa~0.6Mpa 50L/min |
Machine dimension | 1500*1200*1500mm |
Machine weight | 1200kg |
