Dial and Digital display charpy impact testing machine,Impact Testmachine for plastic electric apparatus, impacttesting machine

Dial and Digital display charpy impact testing machine,Impact Testmachine for plastic electric apparatus, impacttesting machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: SHENZHEN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-02-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Hunan, China
  • Brand Name:  Suny
  • Model Number:  SUNY-XJJ-5

Specifications

Charpy impact test machine

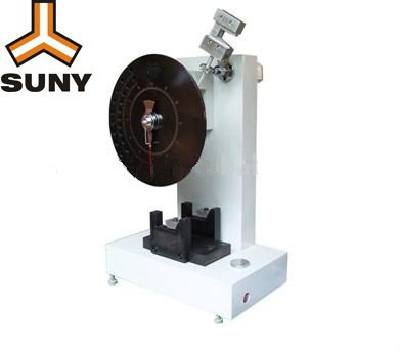

SUNY-XJJ-5 Charpy Impact Testing Machine
Plastic Charpy Pendulum Impact Testing Machine

Product:  Plastic Charpy Pendulum Impact Testing Machine





Model:  SUNY-XJJ-5





Features:



SUNY-XJJ-5 Charpy impact test machine, in line with ISO179, GB/T1043, GB/T8762 and other standards for a variety of non-metallic materials toughness tests, including machining and injection molding notched and unnotched specimens.



Analog simple structure, easy to operate, test speed, data accuracy, stable and reliable performance.





Main technical indexes:





   Model

SUNY-XJJ-5J

Impact speed

2.9m/s

Charpy energy

(0.5J), (1J), 2J, 4J, 5J

Hit center distance

230mm

Pendulum bob rise angle

150°

Blade radius

R=2±0.5mm

Jaw fillet radius

R=1±0.1mm

Impact blade angle

30±l°

Energy display resolution

1J: 2%; 2J: 1%:4J; 5J: 0.5%

Jaw support space (mm)

40, 60, 62, 70

Dimension(mm)

420×260×630







Sample type table:





Sample type

Length L(mm)

Width b(mm)

Thickness h(mm)

Support line space

1

80±2

10.0±0.5

4±0.2

60

2

50±1

6±0.2

4±0.2

40

3

120±2

15±0.5

10±0.5

70

4

125±2

13±0.5

13±0.5

95







Sample gap:



A type gap 45°±1°  gap bottom radius R=0.25±0.05mm



B type gap 45°±1°  gap bottom radius R=1±0.05mm



C1 type gap  2±0.2   right angle gap



C2 type gap  0.8±0.1  right angle gap







About us:

SUNY Instrument Limited is a leading designer & manufacturer for overall solutions of electronic products rapid prototyping, which integrated the business like research & development, production & manufacturing, marketing, engineering, managing and training services. At the same time, we are agency of the brands of laboratory instruments as LABFREEZ.


Our company has acquired certificates of ISO9001, ISO4001 and CE.Our main products range: teaching instruments like quick PCB manufacturing equipment, SMT welding equipment, intelligent production line, small CNC processing equipment and etc. Laboratory instruments like freezers, refrigerators, freeze dryers, ice makers, petroleum & oil testing and etc.


We provide customers integrated solutions and professional services of electronic product design, PCB molding, SMT welding, product assembly and commissioning.





  • Place of Origin:  Hunan, China
  • Brand Name:  Suny
  • Model Number:  SUNY-XJJ-5





Main technical indexes:





   Model

SUNY-XJJ-5J

Impact speed

2.9m/s

Charpy energy

(0.5J), (1J), 2J, 4J, 5J

Hit center distance

230mm

Pendulum bob rise angle

150°

Blade radius

R=2±0.5mm

Jaw fillet radius

R=1±0.1mm

Impact blade angle

30±l°

Energy display resolution

1J: 2%; 2J: 1%:4J; 5J: 0.5%

Jaw support space (mm)

40, 60, 62, 70

Dimension(mm)

420×260×630







Sample type table:





Sample type

Length L(mm)

Width b(mm)

Thickness h(mm)

Support line space

1

80±2

10.0±0.5

4±0.2

60

2

50±1

6±0.2

4±0.2

40

3

120±2

15±0.5

10±0.5

70

4

125±2

13±0.5

13±0.5

95
